Image Access escáner WideTEK 12 SPECTRUM
Image Access escáner WideTEK 12 SPECTRUM
SKU:WT12-SPECTRUM

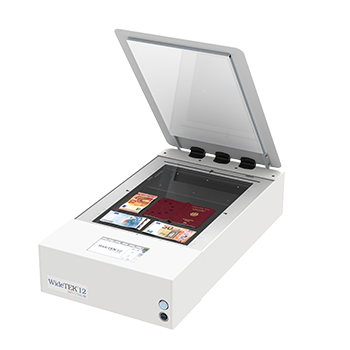

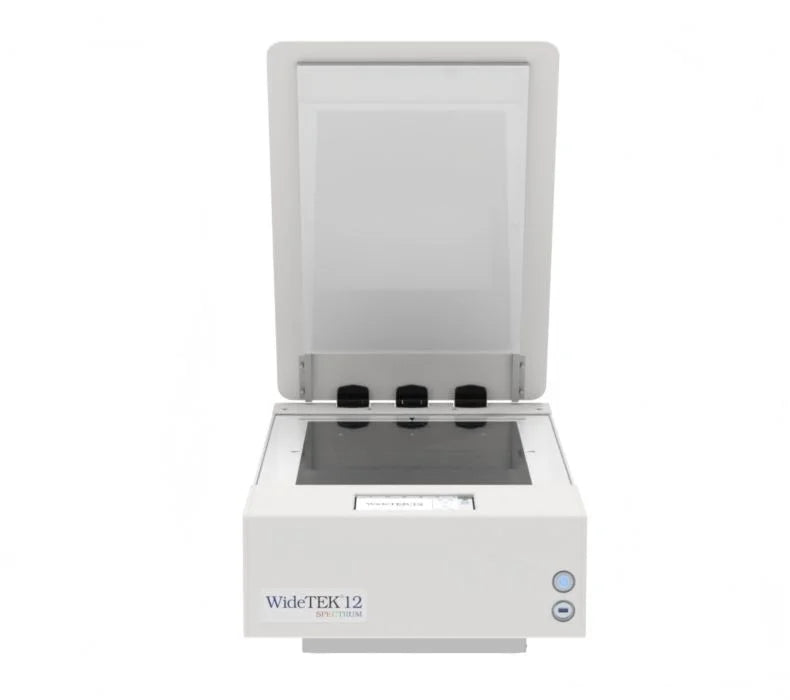

El Image Access WideTEK 12 SPECTRUM es un escáner plano multiespectral de calidad profesional diseñado para el análisis avanzado de documentos, el examen forense y la digitalización de alta precisión. A diferencia de los escáneres convencionales, captura imágenes en los espectros de luz ultravioleta (UV), visible (VIS) e infrarroja (IR), lo que permite detectar características de seguridad ocultas, alteraciones, marcas de agua y características de los materiales que son invisibles en condiciones de iluminación estándar.
Con una resolución óptica de hasta 1200 ppp, el WideTEK 12 SPECTRUM ofrece una claridad de imagen excepcional y una reproducción de detalles muy precisa. Sus sistemas de iluminación UV (365 nm), luz visible e IR (850 nm) integrados permiten un análisis espectral completo en un solo dispositivo. La función de retroiluminación incorporada permite además la detección de marcas de agua y el examen de documentos semitransparentes. El escaneo de alta velocidad garantiza un flujo de trabajo eficiente, con escaneos visibles e infrarrojos completados en solo unos segundos.
Diseñado para entornos profesionales, el escáner es compatible con aplicaciones avanzadas como la verificación de pasaportes y documentos de identidad, la autenticación de billetes, el examen forense de documentos, la conservación de archivos y el control de calidad industrial. Su robusta estructura plana admite materiales de hasta 12,3 × 18,5 pulgadas (313 × 470 mm), lo que ofrece una flexibilidad superior a los formatos A3 estándar.
Especificaciones
- Tipo de escáner: Liso multiespectral (UV / VIS / IR)
- Resolución óptica: Hasta 1200 ppp
- Fuentes de luz: 365 nm UV, luz visible, 850 nm IR, retroiluminación
- Área máxima de escaneo: 313 × 470 mm (12,3 × 18,5 pulgadas)
- Velocidad de escaneo: Aprox. 3 segundos (VIS/IR a 300 ppp), aprox. 12 segundos (UV a 300 ppp)
- Conectividad: Scan2Net® (Ethernet)
- Formatos de salida: PDF, TIFF, JPEG y otros
